High Precision Fast Response Tunable Semiconductor Laser Gas Analyzer for High Temperature Gas Measurement

MOQ : 1 Unit

Delivery Time : 10-15 working days

Repeatability : ≤1%F.S.

Price : USD2000-10000

Explosion-proof Grade : Ex d IIC T6

Packaging Details : Neutral carton

Model Number : AG-TDL07

Principle : Tunable Laser Absorption Spectroscopy(TDLAS)

Payment Terms : T/T,Online Order

Warming-up time : ≤15 min

Supply Ability : 100 Unit/Week

Certification : IOS9001, CE

linearity error : ≤±1%F.S.

Place of Origin : Nanjing, China

Span drift : ≤±1%F.S./6 months

Brand Name : JUGE

Product name : Laser Gas Analyzer

Contact Now

Tunable Semiconductor Laser Gas Analyzer
Fast Response Laser Gas Analyzer for O2, CO, NH3, CO2 Gas Monitoring and Analysis

The laser gas analyzer can measure high-temperature (700°C), high-dust (50g/m³) flue gas, and can realize in-situ analysis at the work site. The analyzer has a short response time, making it a true "real-time online" analysis instrument. It can be used to measure CO, CO2, O2, NH3, HCL, HF, CH4 and other gases, providing real-time and accurate data for process monitoring, safety monitoring, and pollution monitoring.

Key Features
  • High precision, extremely low drift
  • High selectivity, no cross interference
  • High temperature gas measurement capability up to 700°C
  • Ability to measure complex gas mixtures and their component changes
  • Not affected by dust
  • Response time <1 second
  • Long maintenance period and low operating cost

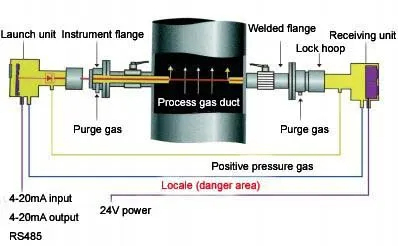

Main Process Line
High Precision Fast Response Tunable Semiconductor Laser Gas Analyzer for High Temperature Gas Measurement
Technical Parameters
Detection Gas Detection Limit Detection Range
O2 0.1% 0-1%Vol, 0-100%Vol
CO 40ppm 0-8000ppm, 0-100%Vol
CO2 20ppm 0-2000ppm, 0-100%Vol
NH3 0.1ppm 0-100ppm, 0-1%Vol
HCL 0.01ppm 0-100ppm, 0-1%Vol
HF 0.01ppm 0-10ppm, 0-1%Vol
CH4 10ppm 0-200ppm, 0-10%Vol
HCN 0.2ppm 0-20ppm, 0-10%Vol
